Carrier SkyMax Ultra
EAN:
30501241135
CHF 999.00
/
Ersatzteil-Details
- Ersatzteilenummer
- Modell
- Generation
- Ersatzteilegruppe
- Träger
- Passend für
Out of stock
Original replacement part for your SkyPergola SkyMax Ultra – please select the version, year, and size matching your pergola.

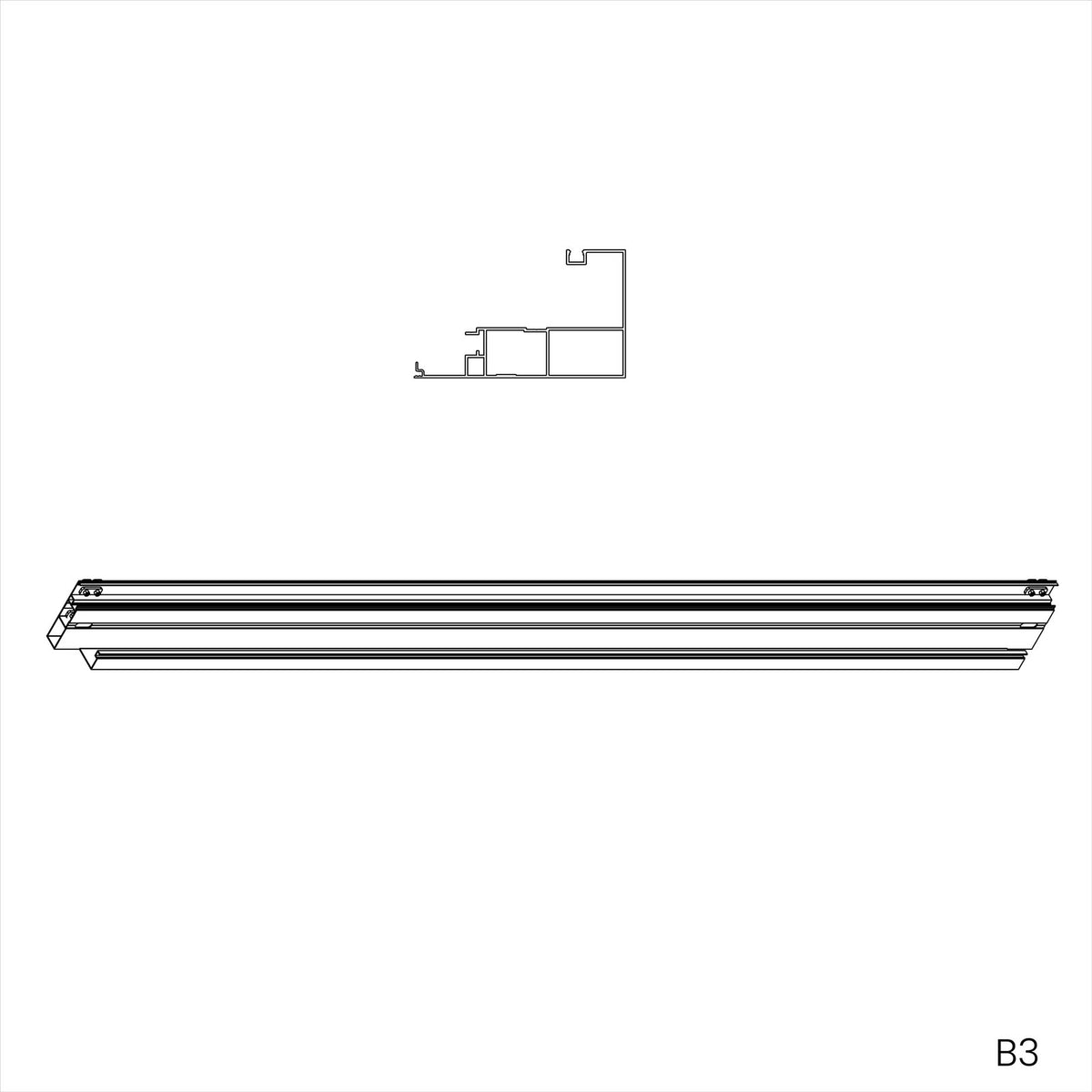

- 2x Beams & gutter for SkyMax Ultra – Side beams B1 & B3 without louver swivel bearing, aluminum profile 190×115mm, length: 2847mm
- 2x Beams & gutter for SkyMax Ultra – Side beams B1 & B3 without louver swivel bearing, aluminum profile 190×115mm, length: 3888mm
- 1x Beam & gutter for SkyMax Ultra – Main beam B4 with louver swivel bearing, aluminum profile 190×115mm, length: 3888mm
- 1x Beam & gutter for SkyMax Ultra – Main beam B4 with louver swivel bearing, aluminum profile 190×115mm, length: 4913mm
- 1x Beam & gutter for SkyMax Ultra – Main beam B4 with louver swivel bearing, aluminum profile 190×115mm, length: 5661mm
- 2x Beams & gutter for SkyMax Ultra – Main beams B4-1 & B4-2 with louver swivel bearing, aluminum profile 190×115mm, length: 3514mm
- 2x Beams for SkyMax Ultra – Side beams B-1 & B-4 without louver swivel bearing, aluminum profile 190×60mm, length: 3982mm
- 2x Beams & gutter for SkyMax Ultra – Main beams B4-1 & B4-2 with louver swivel bearing, aluminum profile 190×115mm, length: 3871mm
- 2x Beams for SkyMax Ultra – Side beams B-2 & B-4 without louver swivel bearing, aluminum profile 190×60mm, length: 2941mm
- 1x Beam & gutter for SkyMax Ultra – Motor beam B2 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×115mm, length: 3888mm
- 2x Beams for SkyMax Ultra – Side beams B-2 & B-4 without louver swivel bearing, aluminum profile 190×60mm, length: 3982mm
- 1x Beam & gutter for SkyMax Ultra – Motor beam B2 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×115mm, length: 4913mm
- 1x Beam for SkyMax Ultra – Main beam B-1 with louver swivel bearing, aluminum profile 190×60mm, length: 3862mm
- 1x Beam & gutter for SkyMax Ultra – Motor beam B2 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×115mm, length: 5661mm
- 1x Beam for SkyMax Ultra – Main beam B-1 with louver swivel bearing, aluminum profile 190×60mm, length: 4887mm
- 2x Beams & gutter for SkyMax Ultra – Motor beams B2-1 & B-2 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×115mm, length: 3514mm
- 1x Beam for SkyMax Ultra – Main beam B-1 with louver swivel bearing, aluminum profile 190×60mm, length: 5635mm
- 2x Beams & gutter for SkyMax Ultra – Motor beams B2-1 & B-2 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×115mm, length: 3871mm
- 2x Beams for SkyMax Ultra – Main beams B-2 & B-3 with louver swivel bearing, aluminum profile 190×60mm, length: 3858.5mm
- 1x Beam for SkyMax Ultra – Motor beam B-3 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×60mm, length: 3862mm
- 1x Beam for SkyMax Ultra – Motor beam B-3 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×60mm, length: 4887mm
- 1x Beam for SkyMax Ultra – Motor beam B-3 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting, aluminum profile 190×60mm, length: 5635mm
- 1x Beam for SkyMax Ultra – Motor beam B-5 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting on the right side, aluminum profile 190×60mm, length: 3858.5mm
- 1x Beam for SkyMax Ultra – Motor beam B-6 with louver swivel bearing and pre-installed M8 rivet nuts for motor mounting on the left side, aluminum profile 190×60mm, length: 3858.5mm
Sizing guide
Original SkyPergola Ersatzteil
Passt garantiert — Schweizer Qualität ab Werk
Jedes Ersatzteil ist exakt für dein Pergola-Modell gefertigt. Wähle oben Ausführung, Jahrgang und Grösse, damit das Teil sicher passt.
Perfekte Passform
Exakt für dein Modell, deinen Jahrgang und deine Grösse gefertigt — kein Nacharbeiten.
Einfache Montage
Mit Anleitung montierbar, kein Spezialwerkzeug nötig. Bei Fragen hilft unser Service.
Original-Qualität
Gleiche Komponenten und Beschichtung wie ab Werk — langlebig und wetterfest.
Designed in Switzerland
Geprüfte Schweizer Qualität. Beratung per Live-Chat oder WhatsApp, wenn du unsicher bist.
